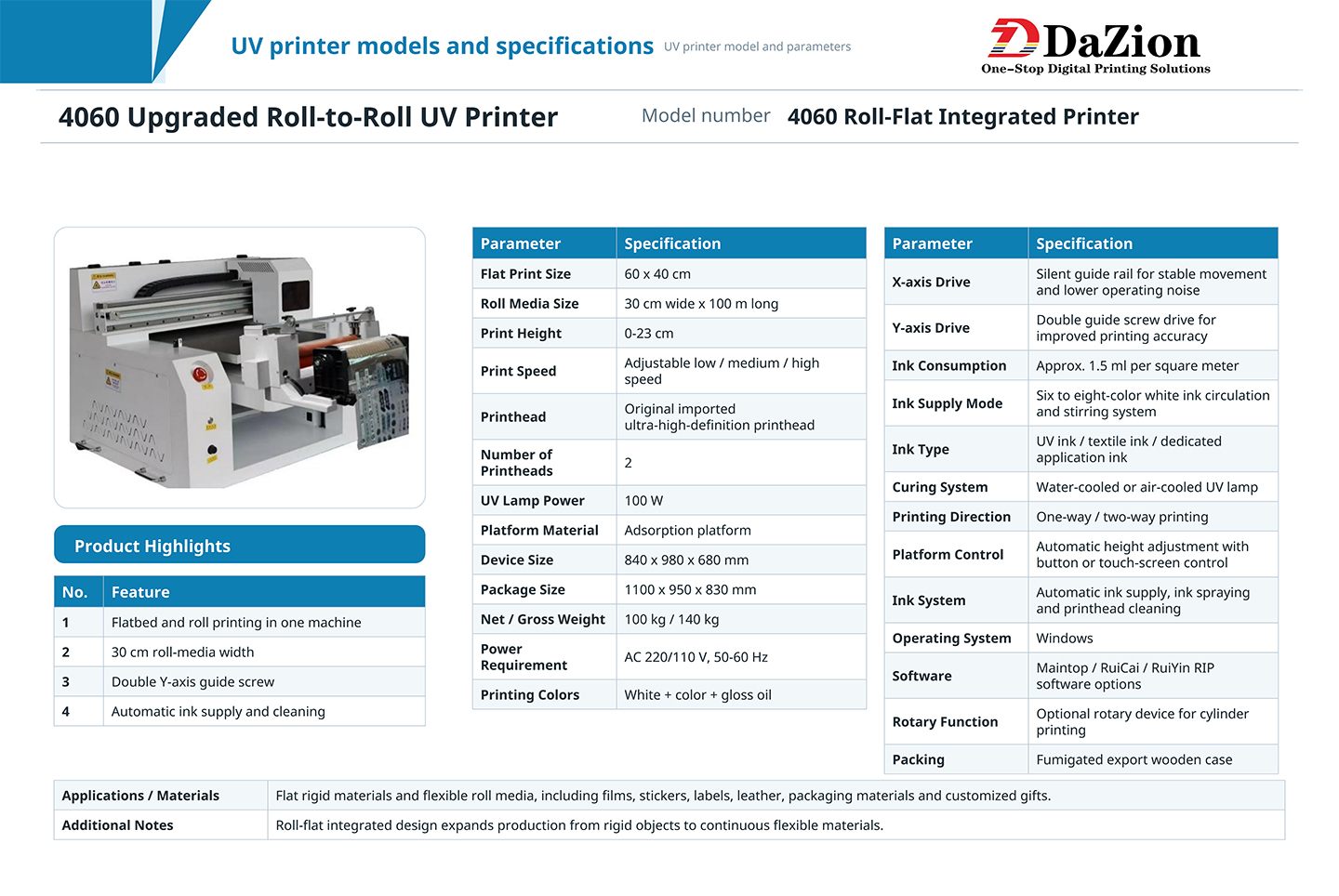

4060 Upgraded Roll-to-Roll UV Printer

Model: 4060 Roll-Flat Integrated Printer

Flat Print Size: 60 × 40 cm

Roll Media Size: 30 cm × 100 m

Print Height: 0-23 cm adjustable

Print Speed: adjustable (low/medium/high speed)

Printhead: original imported ultra high definition nozzle

Number of Printheads: 2

UV Lamp Power: 100 W

Platform Material: Adsorption Platform

Machine size Device Size: 840 × 980 × 680 mm

Package size: 1100 × 950 × 830 mm

Net weight/Gross weight: 100 kg/140 kg

Power Requirement: AC 220/110 V, 50-60 Hz

X-axis drive: silent rail (stable and low-noise)

Y-axis drive: twin-screw drive (high precision)

Ink Consumption: Approximately 1.5 ml/㎡

Ink Supply Mode: 6 8-Color White Ink Circulation+Stirring System

Ink Type: UV Ink/Textile Ink/Special Application Ink

Curing System: Water cooled or air-cooled UV lamps

Printing Colors: White+Color+Varnish

Printing Direction: Unidirectional/Bidirectional Printing

Platform Control: Automatic Height Adjustment+Touch Screen/Button

Ink System: Automatic Ink Supply/Inkjet/Nozzle Cleaning

Operating System: Windows

Software: Maintop/RuiCai/RuiYin RIP software
